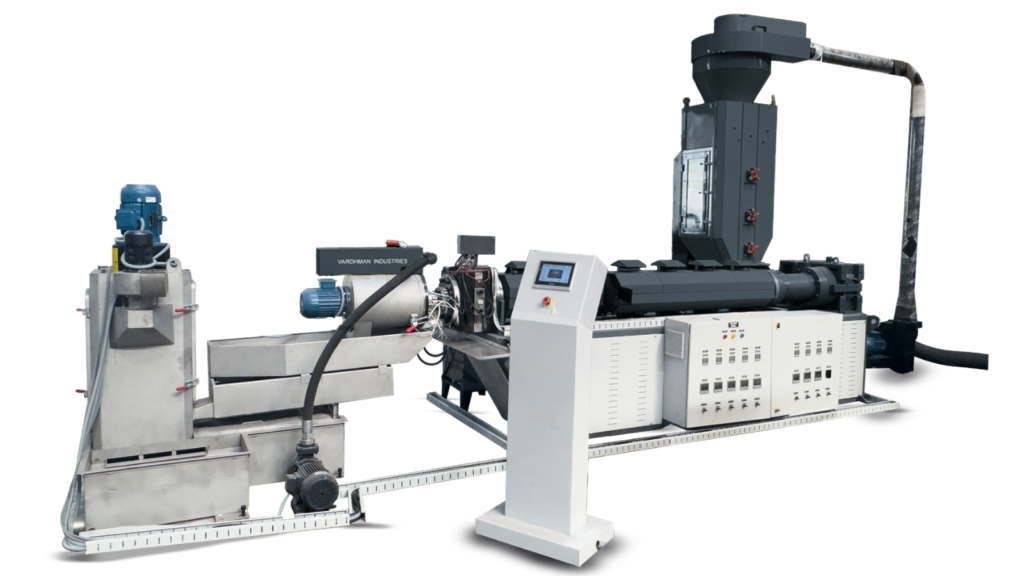

The Single Stage Automatic Recycling Plant is engineered for highly automated, efficient processing of plastic waste into premium, reusable granules. Integrating a high-capacity force-feeder and advanced Die Face Cutting (DFC) technology, the machine delivers uninterrupted operation, minimal manual intervention, and consistent production performance for various plastic materials.

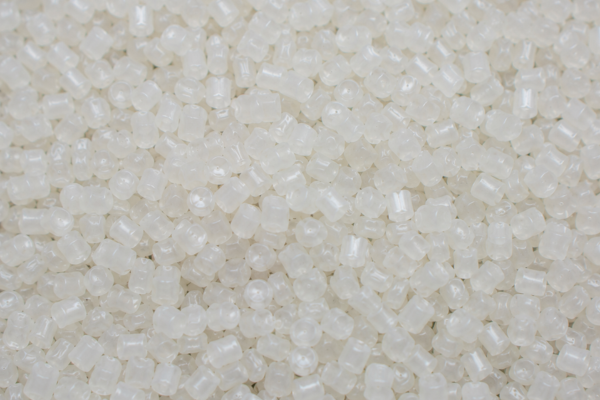

Designed for modern recycling industries, this fully automatic line ensures energy-efficient operation with maximum output capacity and reliable performance. It is exceptionally suitable for processing lightweight materials like plastic films, woven sacks, and raffia, as well as HDPE, LDPE, PP, and other scrap materials, producing perfectly uniform, bone-dry granules.




| Model | Output Kg./hr. | L/D Ratio | Main Motor KW | Connection Load Kw. | Grinder Kw. | Dimension (LxWxH) Ft. |
|---|---|---|---|---|---|---|
| SRP 80 | 80-100 | 30:1 | 22 | 86.73 | 18.68 | 17 x 7.8 x 12 |
| SRP 90 | 100-120 | 30:1 | 29 | 87.4 | 18.75 | 19.7 x 7.8 x 12 |
| SRP 100 | 125-150 | 30:1 | 37.5 | 119.17 | 18.75 | 20 x 7.8 x 12 |
| SRP 120 | 150-180 | 30:1 | 44.7 | 130.55 | 22 | 22 x 7.8 x 12 |
| SRP 120SV | 200-230 | 32:1 | 55.9 | 169.6 | 36.77 | 23 x 7.8 x 12 |
| SRP 130 | 450 - 500 | 36:1 | 89.4 | 205 | 44.7 | 27 x 7.8 x 12 |
