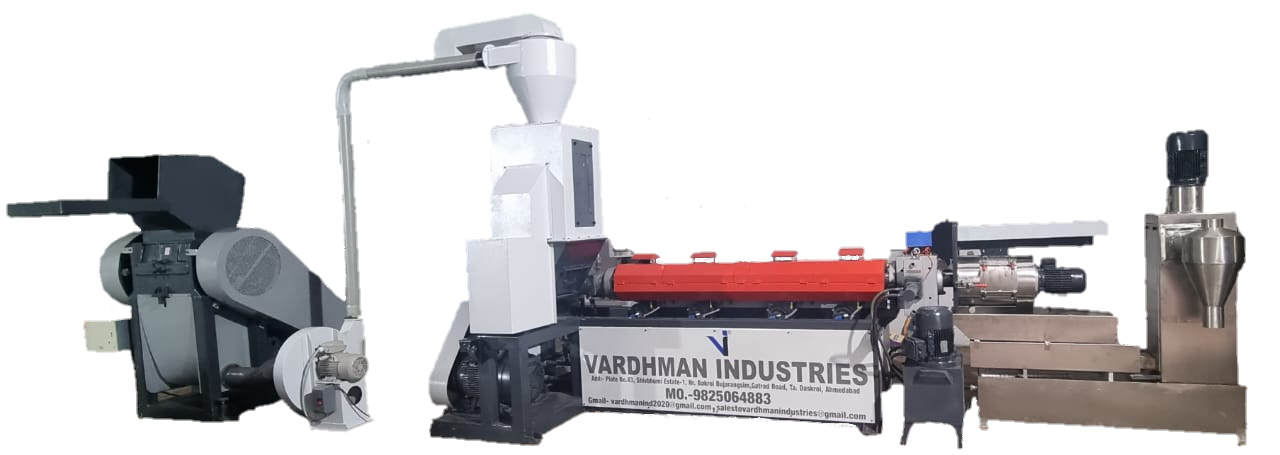

Single Stage Recycling Plant With Force Feeder & Die Face Cutter
Specifications
| Model | Output Kg./hr. | L/D Ratio | Main Motor KW | Connection Load Kw. | Grinder Kw. | Dimension (LxWxH) Ft. |
|---|---|---|---|---|---|---|
|
SRP 80 |
80-100 |
30:1 |
22 |
86.73 |
18.68 |
17 x7.8 x 12 |
|
SRP 90 |
100-120 |
30:1 |
29 |
87.4 |
18.75 |
19.7 x 7.8 x 12 |
|
SRP 100 |
125-150 |
30:1 |
37.5 |
119.17 |
18.75 |
20 x 7.8 x 12 |
|
SRP 120 |
150-180 |
30:1 |
44.7 |
130.55 |
22 |
22 x 7.8 x 12 |
|
SRP 120 SV |
200-230 |
30:1 |
55.9 |
169.6 |
36.77 |
23 x 7.8 x 12 |
Application
- Plastic Waste
- Plastic Film Waste
- Plastic Solid Waste
- Article Waste
- All types of Engineering Plastic
Features
- Force Feeder helps to precess material directly without Agglomeration(Smart Technology).
- Minimum power consumption with Maximum output.
- Specially designed Die face cutter & de-watering unit.
- Semi automatic with PLC.
- Vented Screw design
