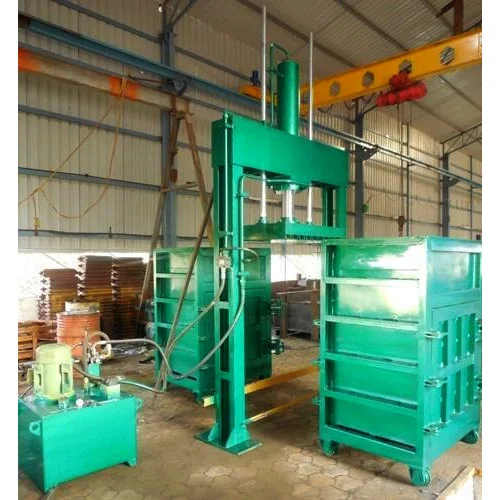

Hydralic Bale Press For Surgical
Description
Semi auto bale press machine are highly suitable for very compact bailing of Woven Sacks waste, paper waste, pet bottle waste, Compact bales of waste made to facilitate minimize transportation cost, time & storage space.
Silent Features
- Extra Heavy Duty M.S. Plate Fabricated structure
- Four open pillar + Two guide Rod
- Compact Hydraulic Block.
- Low maintenance cost
- Overload Protection Valves
- Rust Free self lubricated Guide
Technical Specification
| Model | Output | L/D Ratio | Main Motor (KW) | Connected Load (KW) | LXWXH (Mtr) |
| VI-RE-75HV | 75-85 | 32 | 18.75 | 58.3 | 6.7X2.5X4.3 |
| VI-RE-90V | 100-110 | 32 | 22.5 | 63.35 | 7.3X2.5X4.3 |
| VI-RE-100V | 130-150 | 32 | 37.5 | 98.4 | 7.7X2.6X4.3 |
| VI-RE-120V | 160-200 | 29 | 45 | 111.5 | 7.9X2.7X4.3 |
| VI-RE-120HV | 250-300 | 32 | 56.25 | 137.5 | 8.2X2.7X4.3 |
